Arrowquip Squeeze Chutes

Model: Standard
Weight: 1466 lbs.
Dimensions: 55.8″ W x 92.8″ H x 101.4″ L

Model: Deluxe Vet
Weight: 1703 lbs.
Dimensions: 55.8″ W x 92.8″ H x 128.1″ L

Available Options / Add-Ons

Cattle Head Holder

Sternum Bar

Calf Restrainer Bar

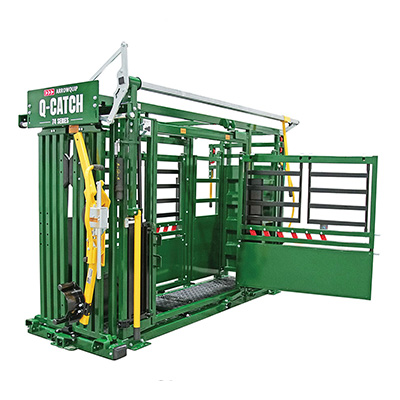

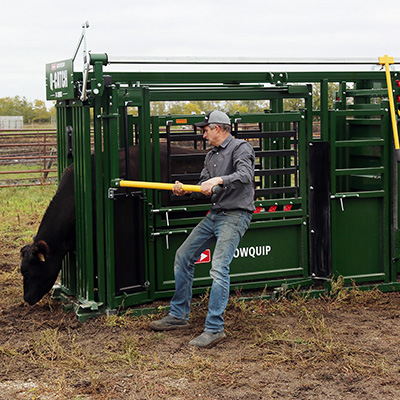

The Q-Catch 74 Series is a practical, reliable chute that makes cattle handling easier and safer with unparalleled access. On top of this, the Deluxe Vet model features a full-size vet cage to fully access your livestock. The Standard model (without a vet cage) features all the access points and has several add-on options. Both models come standard with a 10-year warranty and a lifetime guarantee on the rump fingers and patented friction locks.

• NEW 3E Q-Catch Head Gate design uses light to draw cattle into the chute for better flow
• Head gate opens to full 30″ top to bottom, and has a patented locking mechanism
• Head gate and squeeze locking mechanisms and rump fingers are backed with lifetime warranty
• NEW Direct Drive System for faster head gate response
• Transport & scale-ready
• Head gate handle can be situated anywhere along the side of the chute
• Rolling tail gate is top mounted to eliminate buildup and can be operated from either side of the chute
• Vet door swings 180° in and out of the chute
• Side access doors can be used independently or together
• Squeeze ranges from 29.5″ to 7.75″ and has a single lever push-pull operation
• NEW drop-down needle bar lets you quickly access the animal’s neck
• 10-year chute warranty – Industry’s longest cattle chute warranty ever offered

Model: Standard
Weight: 1680 lbs.
Dimensions: 55.8″ W x 95″ H x 102.6″ L

Model: Deluxe Vet
Weight: 1900 lbs.
Dimensions: 55.8″ W x 95″ H x 129.3″ L

Available Options / Add-Ons

Cattle Head Holder	Sternum Bar
Calf Restrainer Bar	Wheel Kit

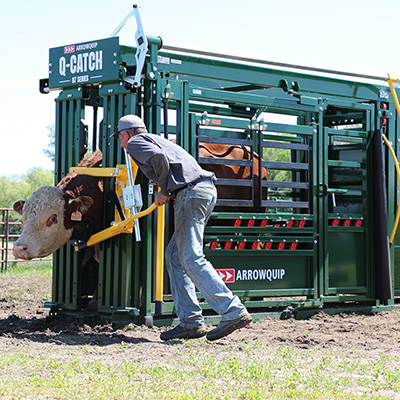

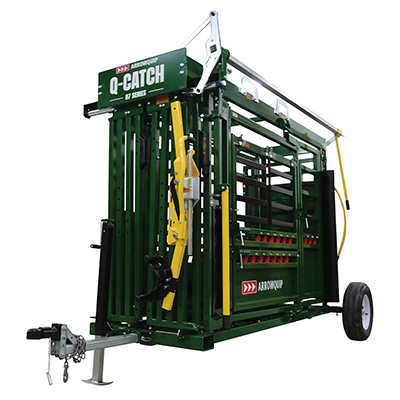

The Q-Catch 87 Series is the cattle chute with everything you need. The Deluxe Vet model features a full-length parallel squeeze with a combined vet cage squeeze, allowing you to narrow the entire chute before cattle enter, to stop them from turning around. The Standard model (without a vet cage) is ideal for working in smaller spaces and has several add-on options. Both models come standard with a 15-year warranty – the longest warranty ever offered in the industry, and a lifetime guarantee on the rubber floor, rump fingers and patented friction locks.

• NEW 3E Q-Catch Head Gate design uses light to draw cattle into the chute for better flow
• NEW poly-coated slam latches eliminate metal clanging
• Head gate opens to full 30″ top to bottom, and has a patented locking mechanism
• Head gate and squeeze locking mechanisms, rubber floor, and rump fingers are backed with lifetime warranty
• NEW Direct Drive system provides faster head gate response
• Heavy-duty frame with 2″ x 6″ beams
• Transport & scale-ready
• Two rows of rump fingers ensure safety no matter if it’s a large bull or small calf
• Head gate handle that can be situated anywhere along the side of the chute
• Rolling tail gate is top mounted to eliminate buildup and can be operated from either side of the chute
• Vet doors swing 180° in and out of the chute
• Side access doors can be used independently or together
• Squeeze ranges from 29.5″ to 7.75″ and has a single lever push-pull operation
• Quietest flooring made from maintenance-free, molded rubber dampens sound and provides great traction
• NEW drop-down needle bar lets you quickly access the animal’s neck
• 15-year chute warranty – Industry’s longest cattle chute warranty ever offered

Model: Standard
Weight: 1930 lbs.
Dimensions: 55.8″ W x 95″ H x 100″ L

Model: Deluxe Vet
Weight: 2215 lbs.
Dimensions: 55.8″ W x 95″ H x 129.3″ L

Available Options / Add-Ons

Cattle Head Holder	Sternum Bar
Calf Restrainer Bar	Wheel Kit

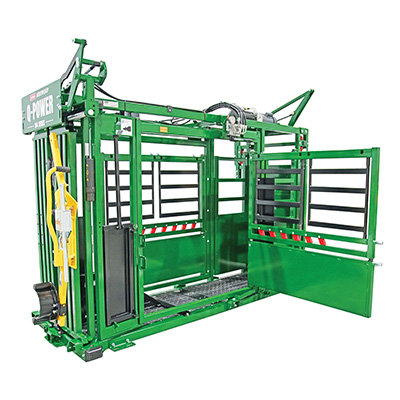

The Q-Power 104 Series is the hydraulic squeeze chute that you can rely on to increase productivity and get the job done right every time. The Deluxe Vet model features a vet cage for added access to complete your processing tasks with ease. The more compact Standard model sits at a cost-effective price point and is the only hydraulic Arrowquip squeeze chute that comes without the vet cage, making it a perfect option for a setup with limited space. The 104 Series also comes backed by a 10-year warranty and a lifetime guarantee on the rump fingers.

• NEW 3E Q-Catch Head Gate design uses light to draw cattle into the chute for better flow
• Head gate opens to full 30″ top to bottom, and has a patented locking mechanism
• Rump fingers and locking systems are backed with lifetime warranty
• Transport & scale-ready

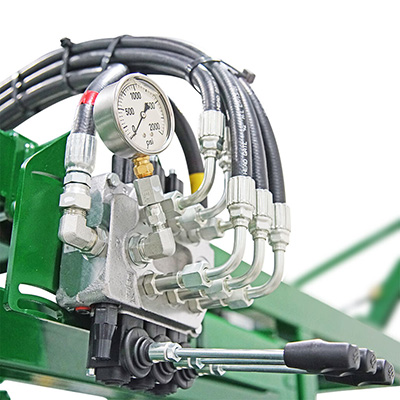

• Hydraulic controls are top-mounted
• Hydraulic rolling tail gate is top mounted to eliminate buildup
• Vet door swings 180° in and out of the chute
• Side access doors can be used independently or together
• Squeeze ranges from 29.5″ to 7.75″
• NEW drop-down needle bar lets you quickly access the animal’s neck
• 10-year chute warranty – Industry’s longest hydraulic chute warranty ever offered

Model: Standard
Weight: 1730 lbs.
Dimensions: 59.8″ W x 95″ H x 103.7″ L

Model: Deluxe Vet
Weight: 1995 lbs.
Dimensions: 59.8″ W x 95″ H x 135″ L

Available Options / Add-Ons

Cattle Head Holder	Sternum Bar
Trimming Bar	Wheel Kit
Hydraulic Head Sweep

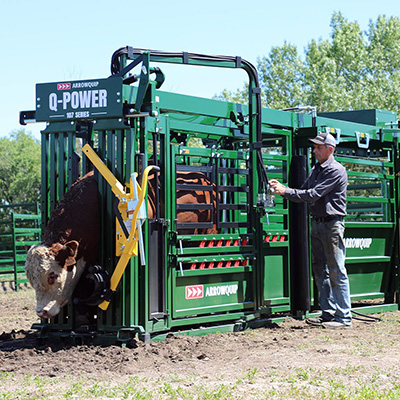

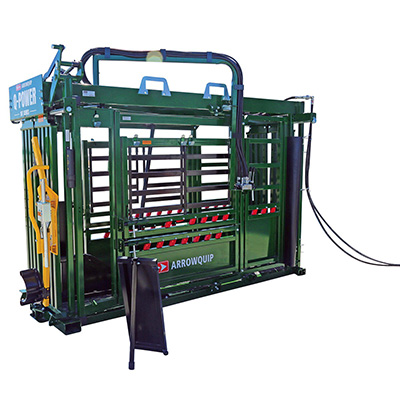

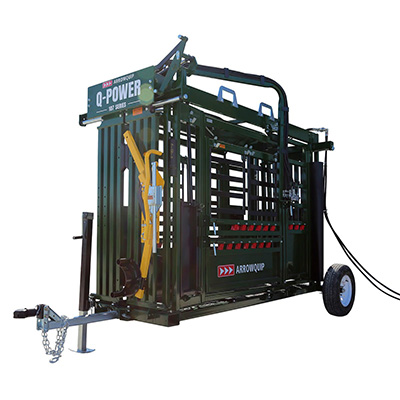

The Q-Power 107 Series provides a calm, quiet cattle handling experience unlike any other with over 107 quiet points from front to back. With fast hydraulics and precision engineering, whether you’re running cow-calf pairs, backgrounding or finishing, your chute will live up to the challenge. Backed by a 15-year warranty and a lifetime guarantee on the rubber floor and rump fingers, you can work your cattle with confidence.

• NEW 3E Q-Power head and tail gates use light to draw cattle into the chute for better flow
• Head gate opens to full 30″ top to bottom, and has a patented locking mechanism
• NEW poly-coated slam latches and poly bushings on all pivot points eliminate metal clanging
• Rubber floor, rump fingers and locking mechanisms are backed with lifetime warranty
• NEW control swing arm lets you operate the chute further back to improve cattle flow
• Upgraded heavy-duty frame with 2″ x 6″ beams
• Transport & scale-ready
• Two rows of rump fingers ensure safety no matter if it’s a large bull or small calf
• Hydraulic control swing arm can be operated on either side of the chute, front to back
• Head gate, Tail Gate, Squeeze and optional Head Sweep all hydraulic
• Vet door swings 180° in and out of the chute
• Side access doors can be used independently or together
• Squeeze ranges from 29.5″ to 7.75″
• Quietest flooring made from maintenance-free, molded rubber
• NEW drop-down needle bar lets you quickly access the animal’s neck
• 15-year chute warranty – Industry’s longest hydraulic chute warranty ever offered
• Weight: 2586 Lbs.
• Dimensions: 60″ W X 101″ H X 135″ L

Available Options / Add-Ons

Cattle Head Holder	Sternum Bar	Hydraulic Head Sweep
Calf Restrainer Bar	Wheel Kit	Electric Hydraulic Power Pack
Gas Hydraulic Power Pack	Tractor Hydraulic Hook-Up	Stealth Upgrade Electric Power Pack

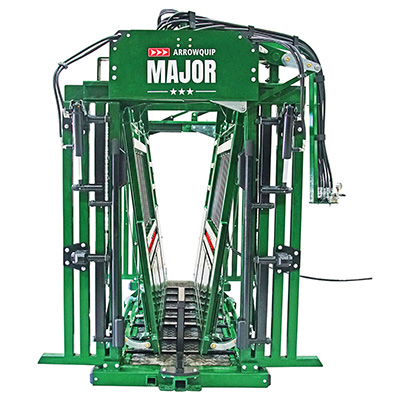

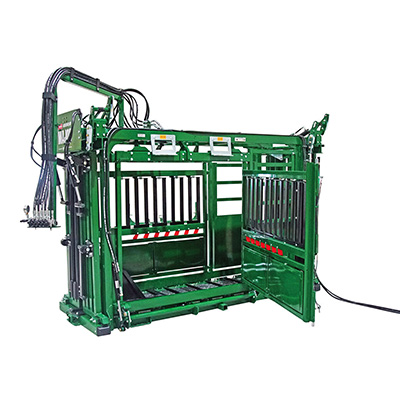

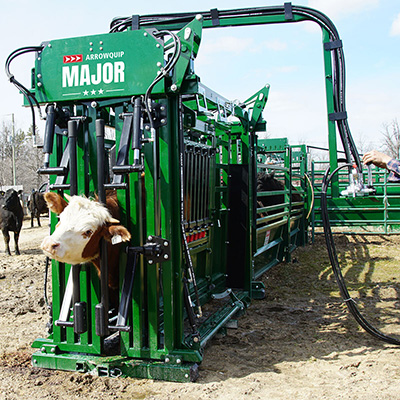

The Major isn’t a manual chute with hydraulics added to it, it is made to be hydraulic from the very start. Designed with feedlot and large-scale cattle operations in mind, features of this chute include a unique 3-way floating squeeze, multiple safe access points and a new, enhanced wheel kit. You can run hundreds or thousands of head of cattle through this chute every year.

• Weight: 3182 Lbs.
• Dimensions: 52-56″ W X 100″ H X 135″ L

Available Options / Add-Ons

Neck Extenders	Sternum Bar	Portable Kit
Calf Restrainer Bar	7 HP Gas Power Pack	7.5 HP Electric Power Pack
Traction Kit

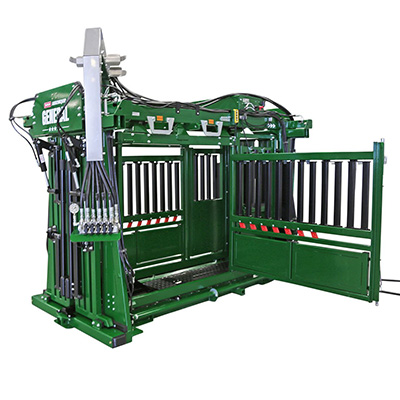

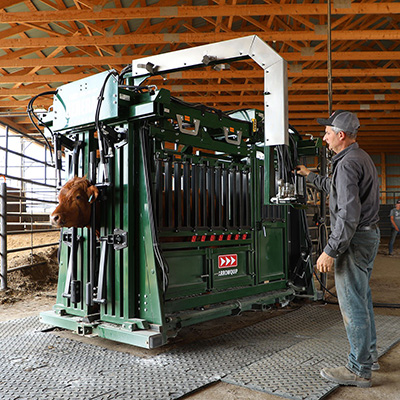

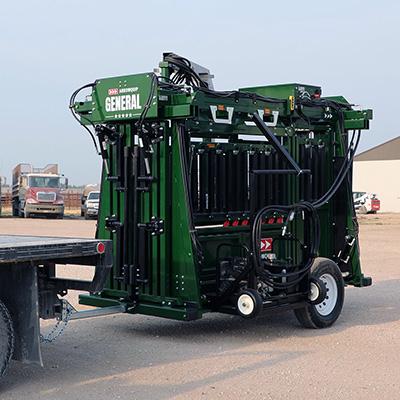

The General is the feedlot quality hydraulic cattle chute that can do it all. A result of 17 years of research, testing and continuous improvement, the General is the most reliable heavy-duty hydraulic squeeze chute in the industry. With the unique 3-way squeeze design and pivoting swing arm, you can easily move between Parallel, V-Squeeze, or A-Squeeze from either side of the chute. With the hydraulic Neck Extenders that gently elongate the animal’s neck, you gain full control to make treating and tagging a breeze.

• 15-year chute warranty – Industry’s longest hydraulic chute warranty ever offered
• 3E Head Gate and Tail Gate design uses light to draw cattle into the chute for better flow
• Squeeze fully opens, ranging from 31.5″ to 7.75″
• Unique 3-way squeeze design (A, V, Parallel)
• Added access and control with hydraulic Neck Extenders
• Derlin Blocks and Rump fingers are backed with lifetime warranty
• Transport & scale-ready
• Top-mounted hydraulic cylinders are easy to access
• Hydraulic controls mounted on pivoting swing arm
• Heavy-duty Delrin Rollers on the head gate, tail gate and squeeze
• Rubber cushions on head gate eliminate bruising on shoulders
• Split gate swings out in opposite directions
• 8 drop-down access bars
• Side access doors open fully and secure with double latch
• All linkages eliminated to reduce wear points
• Steel floor pans topped with exceptionally durable rubber floor
• Weight: 4083 Lbs.
• Dimensions: 65″ W X 102″ H X 134″ L

Available Options / Add-Ons

Neck Extenders	Sternum Bar	Portable Kit
Calf Restrainer Bar	14 HP Gas Power Pack	7.5 HP Electric Power Pack
Traction Kit
