Specs: Stronger, Tougher, Better
- Cradle Capacity: 12, 14, 16 Bale Capacity
- Cradle Length: 33″, 38″, 43″
- Trailer Width” 102″
- Trailer Height: 80″
- Colors: Silver
- Paint Type: Powder Coat
- Prep: Steel Blasted
- GAWR: 10,000 lbs X (2)
- Front Jacks: 1 x RAM Drop Leg Jack 12,000 lbs
- Jack Options: Option to Upgrade to Hydraulic Jack
- Coupler: 2-5/16″ (25,000 lbs)

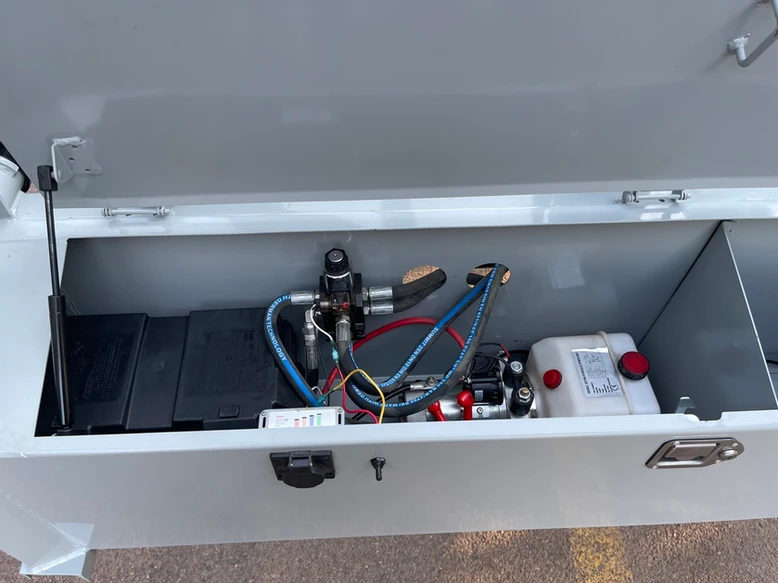

- Toolbox: Yes (houses battery and pump)
- Neck From: I-Beam Manufactured from 1/4″ Steel Plate
- Main Frame Chassis: 3″ x 4″ x 3/6″ Square Tubing
- Chassis Crossmembers: 3″ x 4″ x 3/16″ Square Tubing
- Cradle Lifting Assist: Spring
- Cradle Cushioning Rubber
- Safety Chains: 3/8″ Chains
- Breakaway System: Electric Breakaway Kit
- DOT Compliant Reflective Tape
- Axles: 2 x 10,000 lbs Oil Bath Hubs Axles
- Electric Drum Brakes on both Axles
- Spring Suspension
- Tires: Duals ST235-80R16 10 ply
- Rim: Dual 16″ Black Mod Wheels
- Spare Time & Mount
- Battery
- 5 amp 110V Intergaded Trickle Charger
- Wiring Harness: Inclosed Wire Harness
- 18 ga Frame Wiring
- LED Side and Rear lights
- Wired Controller
- 12V Dual Action Hydraulic Pump
