Better Quality at a Better Price!
Cut Your Overhead, Increase Your Profits with Round Overhead Storage Bins. Puts the bloom on your cattle to get top price for less money!

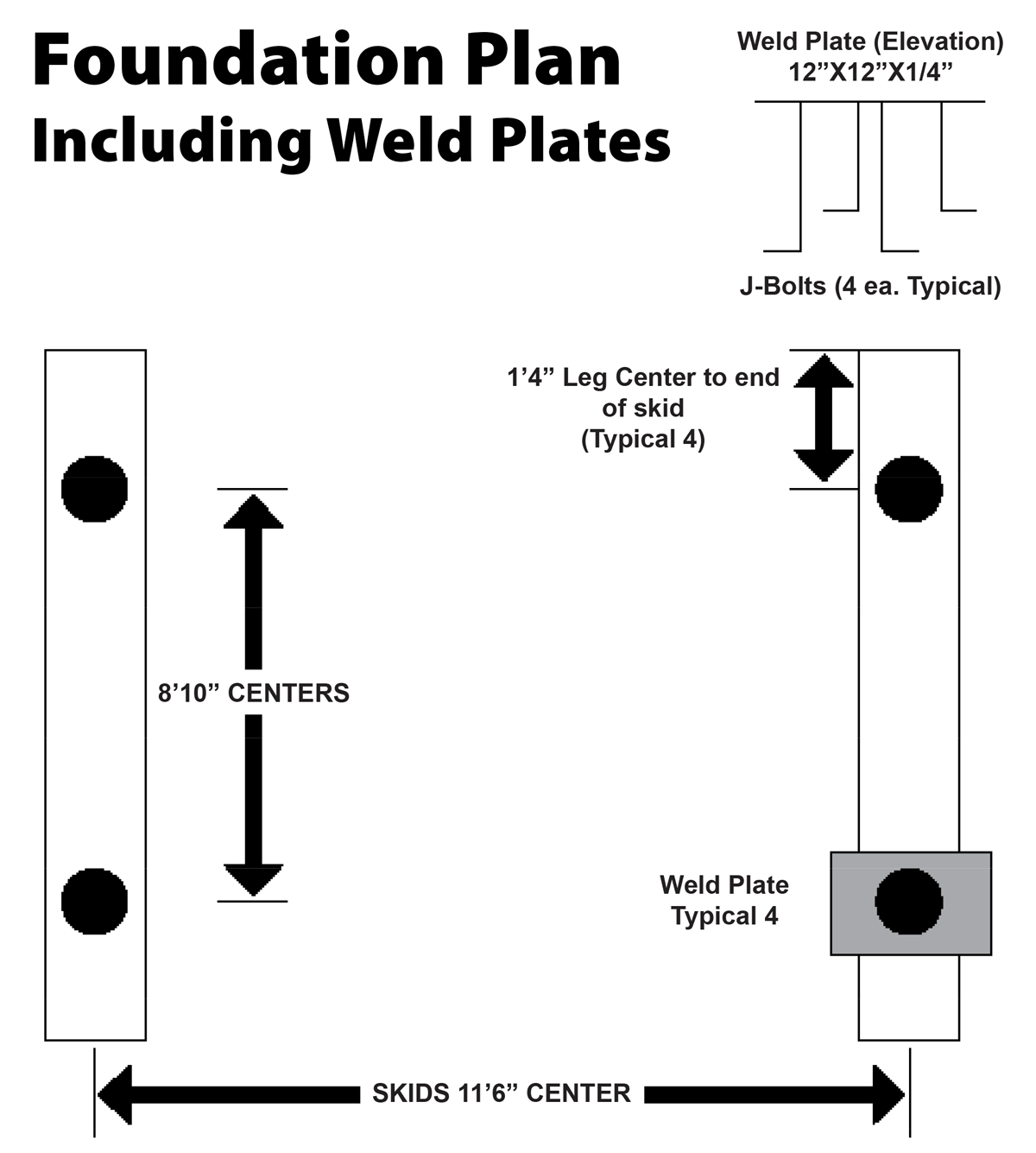

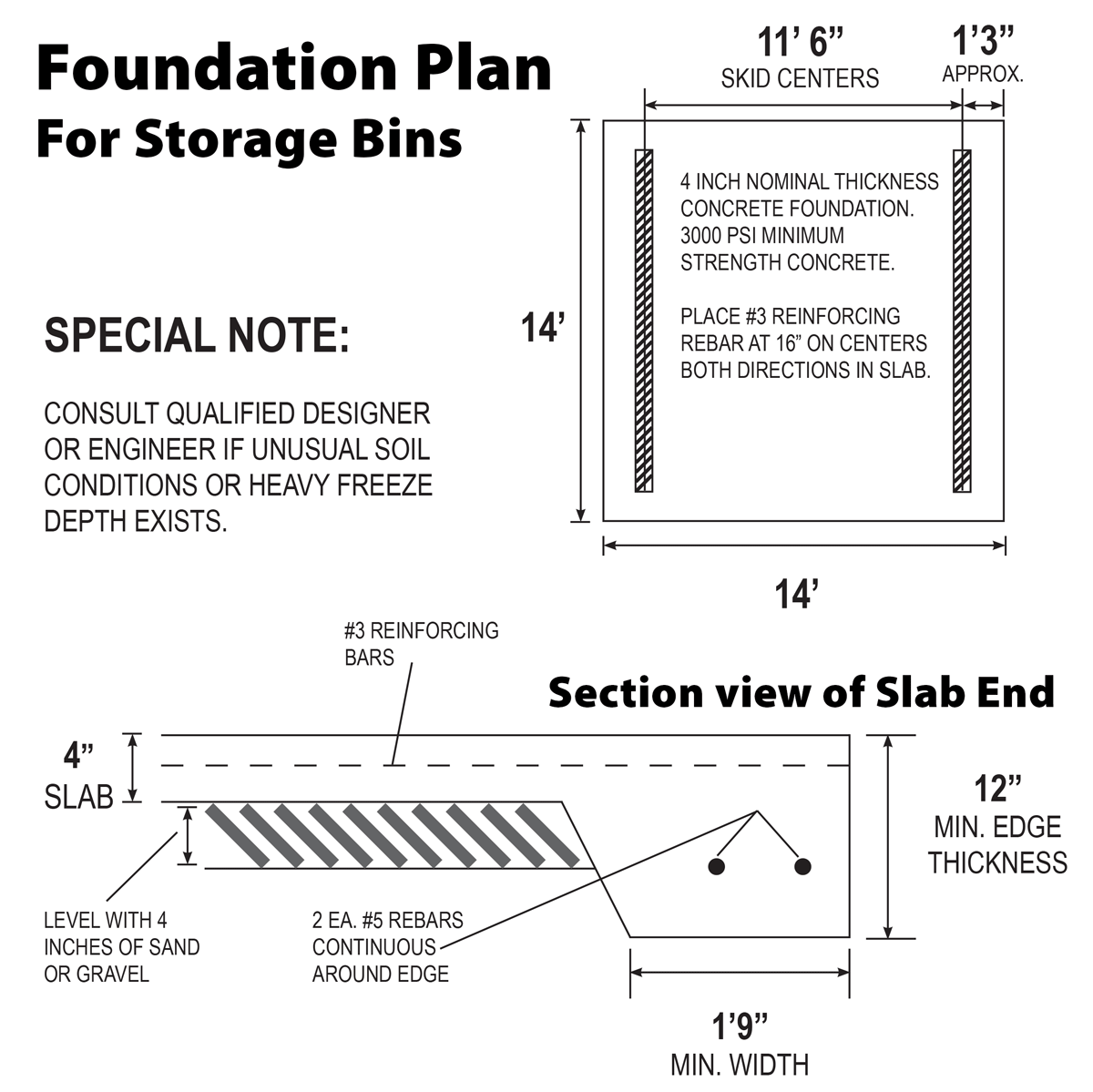

Concrete is the ideal surface for any of our bins, but a hard pack gravel pad will work also.
- Increase efficiency – no more feed sacks to handle.
- Cuts losses caused by rodents & varmints!
- Allows you to save money by buying in bulk.
- Feed more for less money.
Standard Features
- Epoxy liner inside every bin
- Round Construction
- Made with 12 gauge metal (New Material)
- Skid mounting
- Ground-controlled top lid opener
- Windsock for the bottom gate
- Weatherproof vent to create positive air flow inside
- Standard nine-foot overhead clearance
- Eleven-foot-wide drive through clearance
- All welded construction with a heavy pipe structure that is skid mounted and can be moved with a tractor.
- Primed and painted with heavy industrial enamel that will last for years
- Sight glass for conveniently monitoring feed level
- Can be built to extra high or wide specifications
Optional Features
- Divider for holding two types of feed
- Bucket chute
- Ladder added inside plain bins
- Digital Scales
- Paint job, other than standard white
- Blow Tube

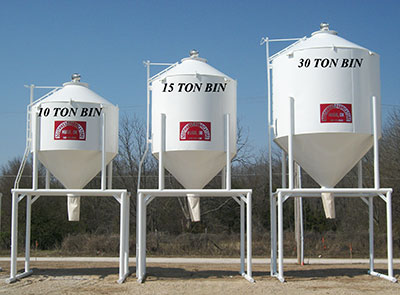

Cattle Feed Bin Specifications
| Size (tons) | Overall Height | Width | Dimensions | Additional Notes |
| 10 | 21’9″ | 9’6″ | 532 Cu. Ft. or 430 Bu. 9’6″ diameter | The 10 Ton Bin, features a wide drive through and a standard 9’0″ overhead clearance. It has a ground controlled top lid opener and a windsock for the bottom gate.
Skids are 11’6″ long, 5.5″ (OD) Round, extra heavy wall thickness |

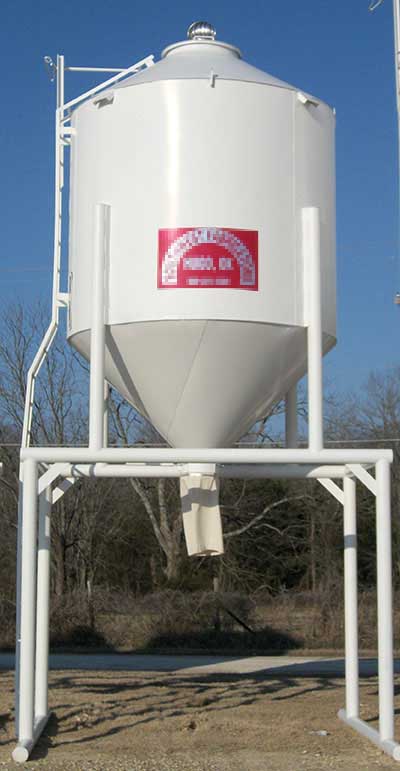

| 15 | 24’9″ | 9’6″ | 765 Cu. Ft. or 617 Bu. 9’6″ diameter | The 15 ton works great because you can take on a bobtail truck load without running completely out of feed. It features a wide drive through and a standard 9’0″ overhead clearance. It has a ground controlled top lid opener and a windsock for the bottom gate.
|
| 30 | 27’8″ | 12′ | 1381 Cu. Ft. or 1113 Bu. 12′ diameter | The 30 Ton Bin, features a wide drive through and a standard 9’0″ overhead clearance. It has a ground controlled top lid opener and a windsock for the bottom gate.
|
| 35 | 30’8″ | 12′ | 1721 Cu. Ft. or 1388 Bu. 12′ diameter | Same as our 30 Ton Bin. All bins have the following features, a standard 9’0″ high by 11’0″ wide drive through. Other clearances are available to accommodate even the largest feed wagon trucks. It has a top lid opener you control from the ground and a windsock for the bottom gate. A sight glass is mounted near the ladder.
|
