Start Saving Energy, Time & Money Today
Miraco makes high quality durable livestock watering systems. The MiraFount waterers will keep your cattle well hydrated with plenty of fresh, clean water.
- Polyethylene construction
- No sharp edges
- Tough, high-impact resistant “Rockite” material
- Durability to stand up to livestock abuse
- Resistance to corrosion
- 5-year warranty
- Patented Miraco roll-away ball closures
- Extra insulation above the valve area
- Removable dome for quick and easy access to valve area
- 2″ to 3″ urethane insulation
- Molded base unit anchors (stainless steel anchor bolts included)
- Sealed bottoms
- Sloped bottoms for easier cleaning – a MiraFount exclusive
- Minimum head required

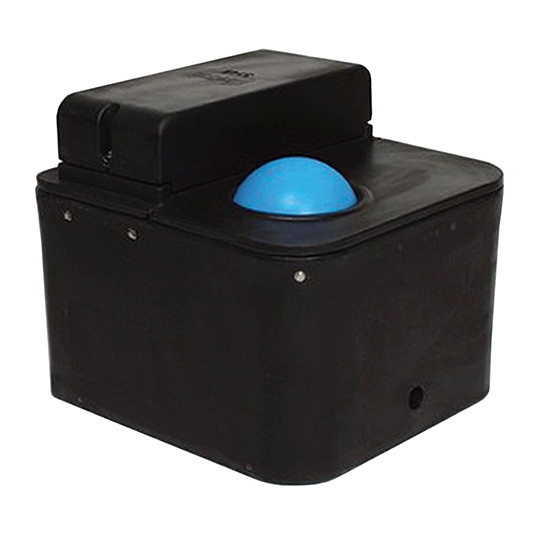

MiraFount 3345
MiraFount 3345 is perfect for Beef and Dairy. It’s unique system allows for your herd to have continuous fresh water. The ball serves as a seal to keep bugs, leaves, and other contaminants out of the water. The water continually circulates to keep it fresh and free from bacteria and algae. Compatible with a Miraco Heater Kit (sold separately).
- 1 Hole – 30 Gallons
- Patented Miraco roll-away ball closures
- Removable dome for quick and easy access to valve area
- Sloped bottoms for easier cleaning
- Extra insulation above the valve area aids in preventing freezing
- 2″ to 3″ urethane insulation to reduce chance of freezing
- Corrosion-resistant & polyethylene construction slows wear and tear
| Capacity: | 75 Head of Beef |
| 30 Head of Dairy | |
| Size: | 30 Gallons |
| Opening Size: | One 10″ Opening (10.75″ Ball) |
| Dimensions: | 29″ X 31″ X 18″ |
| Weight: | 95 Lbs |
| Drinking Height: | 18″ |
| Ideal Uses: | Beef & Dairy |
| Product Number: | A3345-S |
| Type: | Roll Away Ball |
| Warranty: | 5 Years |

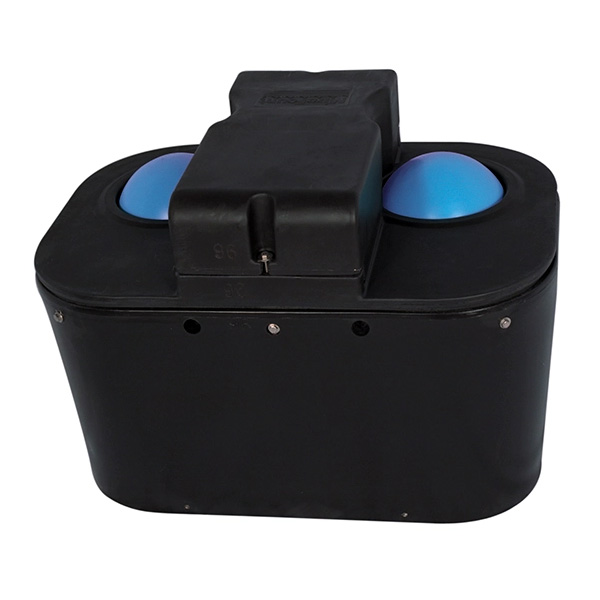

MiraFount 3465
The MiraFount 3465 Two-Hole Watering Trough is excellent for keeping fresh water for your herd. It is great for beef and dairy livestock and has two openings for maximized usage in multiple pastures. It is very durable and insulated so your water won’t freeze. It includes two openings so you can optimize usage among two different pastures. Compatible with a Miraco Heater Kit (sold separately).
- 2 Holes – 20 Gallons
- Patented Miraco roll-away ball closures
- Removable dome for quick and easy access to valve area
- Sloped bottoms for easier cleaning
- Extra insulation above the valve area aids in preventing freezing
- 2″ to 3″ urethane insulation to reduce chance of freezing
- Corrosion-resistant & polyethylene construction slows wear and tear
| Capacity: | 100 Head of Beef |
| 40 Head of Dairy | |
| Size: | 20 Gallons |
| Opening Size: | Two 9.25″ Openings (10″ Ball) |
| Dimensions: | 36″ X 24″ X 18″ |
| Weight: | 79 lbs |
| Drinking Height: | 18″ |
| Ideal Uses: | Beef & Dairy |
| Product Number: | A3465 |
| Type: | Roll Away Ball |
| Warranty: | 5 Years |

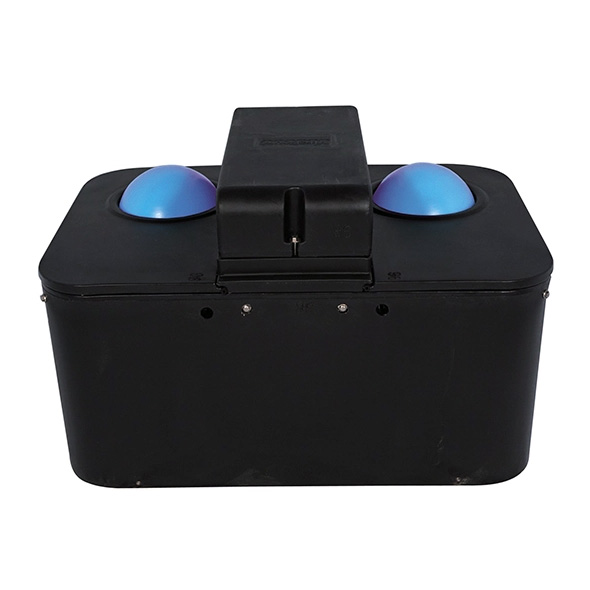

MiraFount 3390
The MiraFount 3390 Two-Hole Watering Trough has a 44 gallon capacity. It has two ball enclosures that allow easy access to your livestock-while maintaining the water fresh and at a good temperature. This unit has a drinking height of 20″. Compatible with a Miraco Heater Kit (sold separately).
- 2 Holes – 44 Gallons
- Patented Miraco roll-away ball closures
- Removable dome for quick and easy access to valve area
- Sloped bottoms for easier cleaning
- Extra insulation above the valve area aids in preventing freezing
- 2″ to 3″ urethane insulation to reduce chance of freezing
- Corrosion-resistant & polyethylene construction slows wear and tear
| Capacity: | 150 Head of Beef |
| 60 Head of Dairy | |
| Size: | 44 Gallons |
| Opening Size: | 2 – 10″ Openings (10.75″ Ball) |
| Dimensions: | 43″ x 29″ x 20″ |
| Weight: | 126 Lbs. |
| Drinking Height: | 20″ |
| Ideal Uses: | Beef & Dairy |
| Product Number: | A3390 |
| Type: | Roll Away Ball |
| Warranty: | 5 Years |

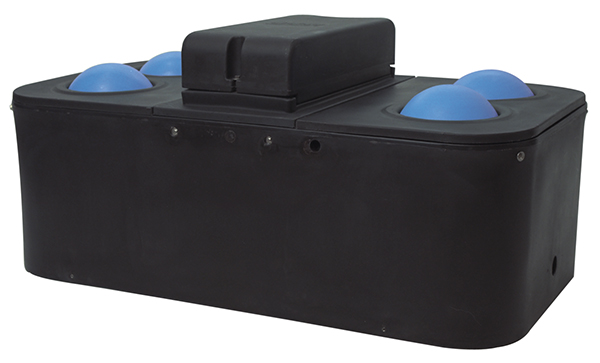

MiraFount 3354
The MiraFount 3354 Four-Hole Watering Trough holds up to 70 gallons of water. It’s 4 ball system allows for easy drinking while keeping the water fresh and algae free. It’s drinking height is 19″. It is very sturdy and has rounded edges for the safety of you livestock.
- 4 Holes – 70 Gallons
- Patented Miraco roll-away ball closures
- Removable dome for quick and easy access to valve area
- Sloped bottoms for easier cleaning
- Extra insulation above the valve area aids in preventing freezing
- 2″ to 3″ urethane insulation to reduce chance of freezing
- Corrosion-resistant & polyethylene construction slows wear and tear
| Capacity: | 200 Head of Beef |
| 90 Head of Dairy | |
| Size: | 70 Gallons |
| Opening Size: | 4 – 9.5″ Openings (10.75″ Ball) |
| Dimensions: | 57.5″ x 32.5″ x 19″ |
| Weight: | 152 Lbs. |
| Drinking Height: | 19″ |
| Ideal Uses: | Beef & Dairy |
| Product Number: | A3354-S |
| Type: | Roll Away Ball |
| Warranty: | 5 Years |

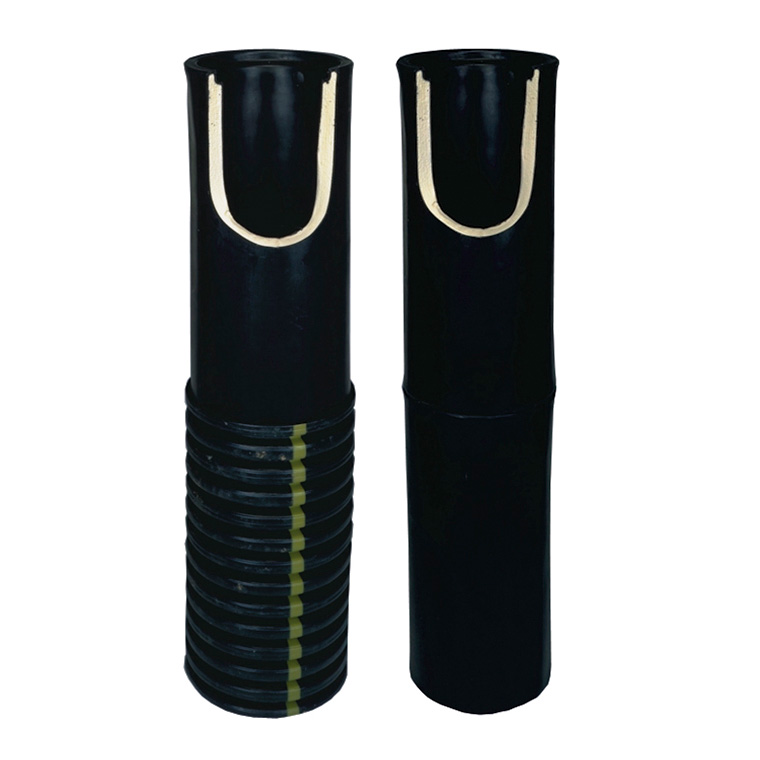

Insulated Heat Tubes
Highly insulated tube shields incoming ground water from cold as it passes through the frost level. Polyethylene construction ensures years of trouble-free use. One 30-inch tube and 3 feet of 12-inch plastic drainage tile provides a sufficient heat well in most locations. For northern locations, two 30-inch heat tubes may be required.
| Dimensions | 30″ Long |
| 14″ Wide (outside) 12″ (inside) | |
| 2″ Thick | |
| Weight: | 18 Lbs. |
| Warranty: | 1 Year |
