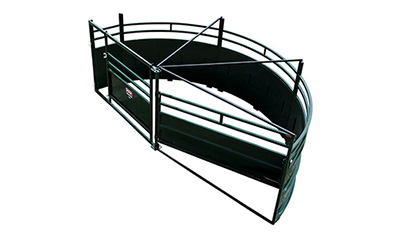

Cattle Tubs

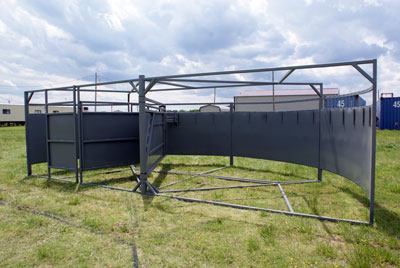

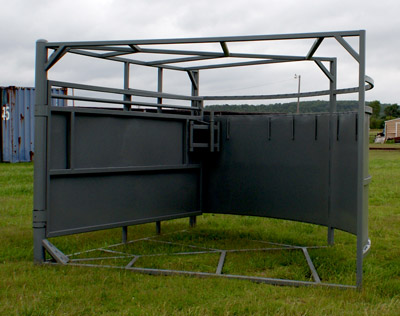

Both the standard 90 degree and the 180 degree tubs are ONE piece. That means they are ready to go the minute you set them and no bolts and nuts to fool with or get loose on you.

90 or 180 degrees won’t fit your needs perfectly? Don’t sweat it. GoBob will build you whatever size you need.

View Product

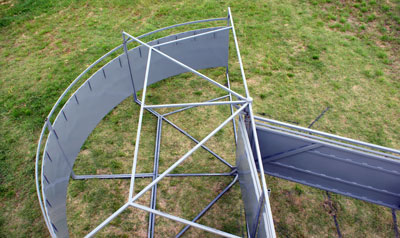

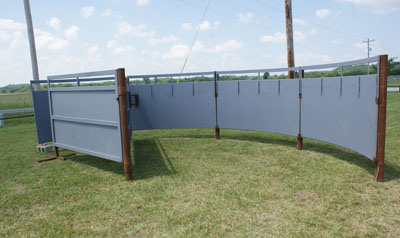

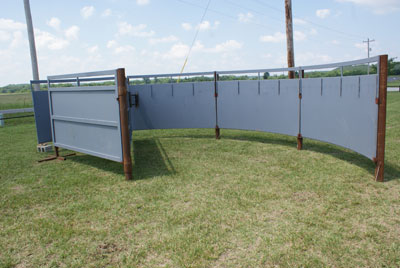

Up until now, a rancher’s only choice for crowding tubs were either lightweight bolt together units or very expensive permanent tubs that were custom built on site.

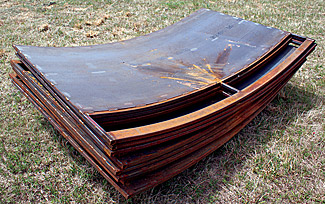

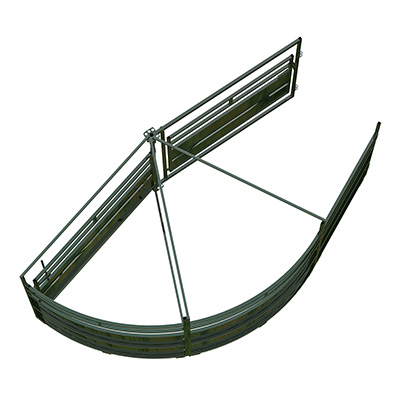

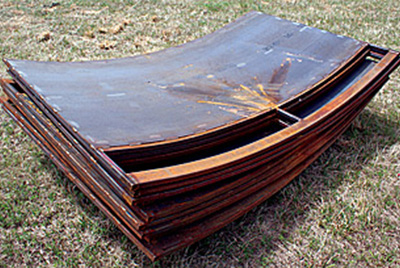

Now you build your own cattle-crowding tub with the Cattle Flow™ pre-manufactured radius panels for easy permanent installation. Whether you want to turn your cattle 90 degrees or 180 degrees or something in between, you can do it because we sell the panels separately.

Built to a 12-foot radius, these panels are HEAVY & built to last!

Even the crowding gate, complete with a “no back” spring loaded latch is sold separately. So feel free to design your own tub.

Once again, GoBob Pipe & Steel Sales answers the need for heavy-duty livestock products at a reasonable price.

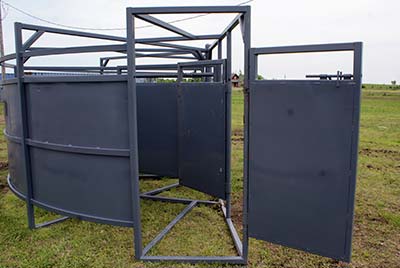

Many times you need flat, un-curved sheeted panels in your system. Perhaps you want to make a non-adjustable alley. We have them, they are built to last and you can purchase them as needed.

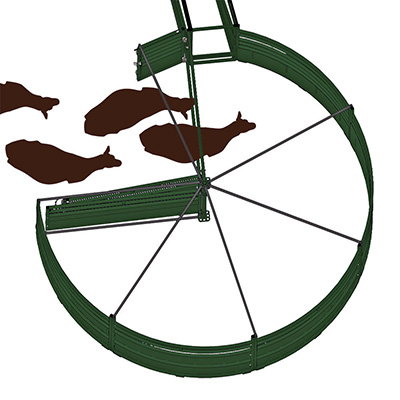

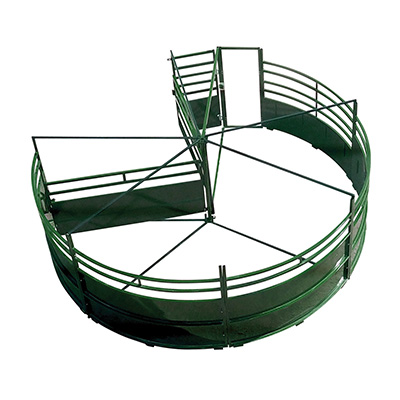

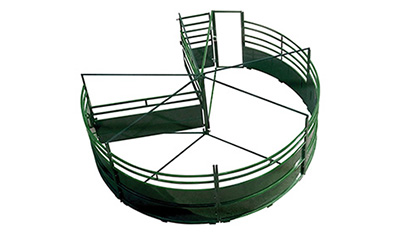

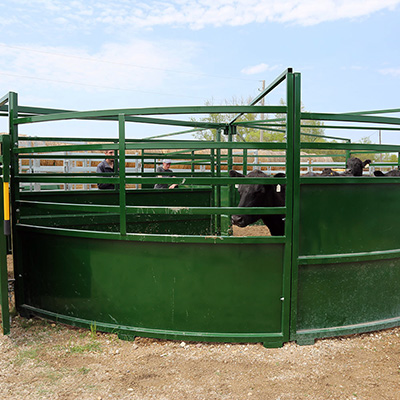

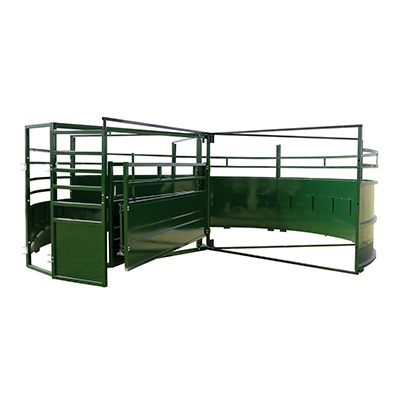

Keep your cattle flowing naturally with the 3E™ BudFlow® Cattle Tub. Cattle are instinctively drawn to areas where more light can be seen, allowing you to guide them effortlessly whether you’re running a large group of cow-calf pairs or a small group of cattle through a system.

• Comes in 8′, 10′, and 12′ radius
• 3E System uses natural cattle behavior and light to create flow
• Crowd gate is designed to ensure operator safety and can be used to direct animals in the right direction if necessary
• Low-sheeted panels enhance flow by drawing cattle to the light leading in the right direction
• Crowd gate lock prevents animals from pushing the gate back
• Durable clips allow for seamless connection with other Arrowquip products
• Panels are bolted tightly together for more stability and to eliminate rattling
• 14-gauge steel sheeting
• Rubber bushing on the crowd gate lock dampens noise
• Center post features a rubber bumper to eliminate the gap between the post and back gate
• Built with powder-coated steel and high-quality materials for long-term use and durability

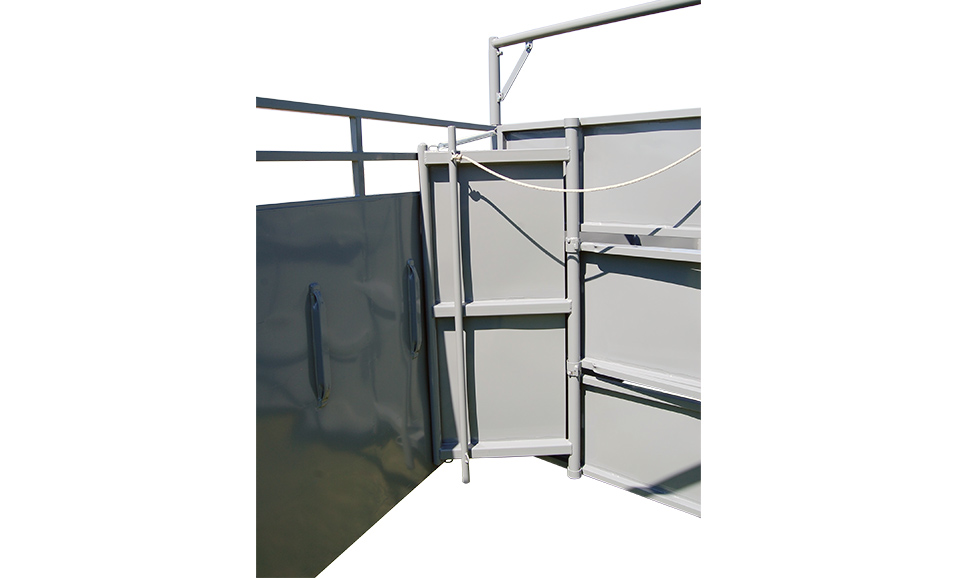

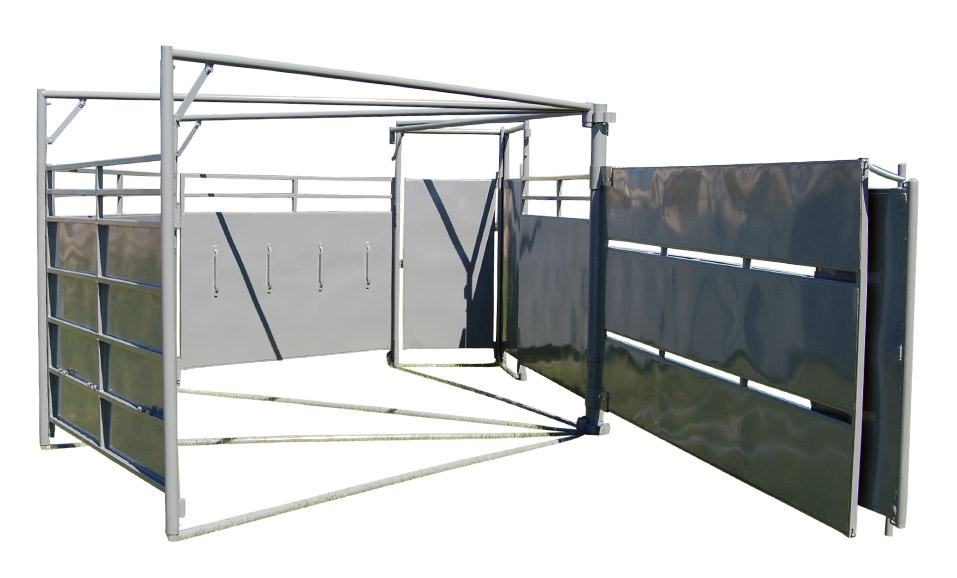

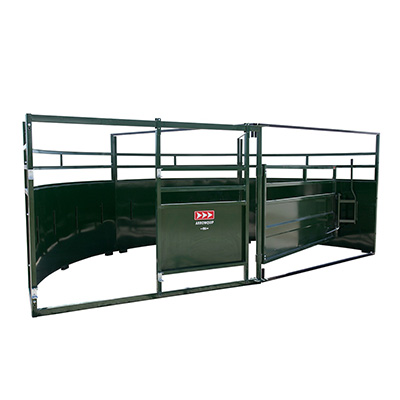

Arrowquip’s Cattle Crowding Tub is where high capacity meets high-quality. Designed to help you move your cattle quickly and safely into a chute, alley, or truck, the Crowding Tub is a lightweight, yet extremely durable option.

• Comes in 8′, 10′ 12′ Radius
• Moves cattle quickly and safely into a chute, alley or truck
• Easy to assemble
• Exit gate and crowd gate lock-out included
• Rectangular tubing limits cattle bruising and injury
• Panels are bolted tightly together for more stability
• 14-gauge steel sheeting
• Caulking on sheet metal to reduce noise
• Center post features a rubber bumper to eliminate the gap between the post and back gate
• Built with powder-coated steel and high-quality materials for long-term use and durability

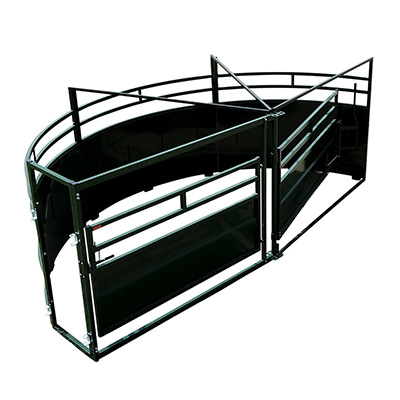

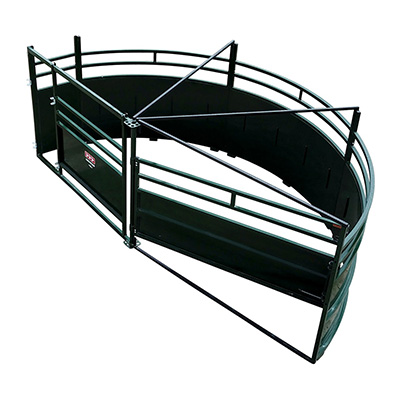

Model: Single 90° Alley Exit
Weight: 1219 Lbs. / 1486 Lbs. / 1843 Lbs.
Dimensions: 101.8″ W x 86″ H x 190.3″ L
126″ W x 86″ H x 236.2″ L
152.8″ W x 86″ H x 288.2″ L
Available in 8′, 10′ and 12′ Diameters.

Model: Double 90° Alley Exit
Weight: 1370 Lbs.
Dimensions: 126.8″ W x 86″ H x 241″ L
Available in 10′ Diameter.

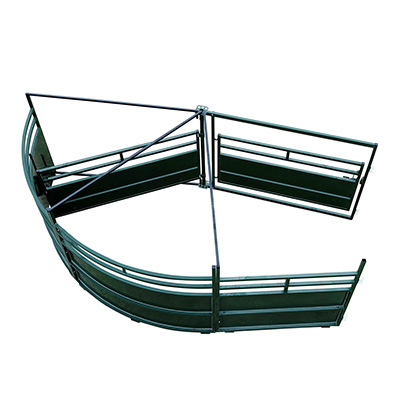

Model: Single 180° Alley Exit
Weight: 1221 Lbs. / 1487 Lbs.
Dimensions: 101.8″ W x 86″ H x 187.6″ L
126″ W x 86″ H x 235″ L
Available in 8′ and 10′ Diameters.

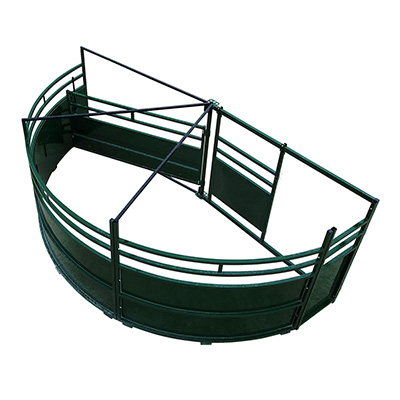

Model: Double 180° Alley Exit
Weight: 1435 lbs.
Dimensions: 126.8″ W x 86″ H x 235″ L
Available in 10′ Diameter.
